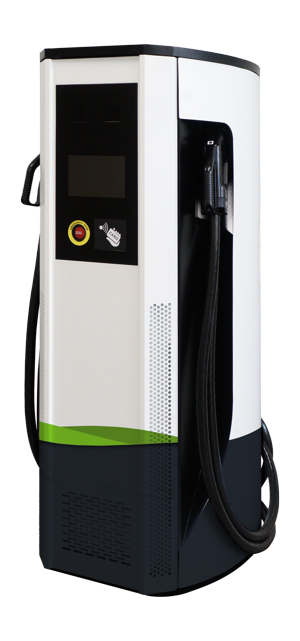

DC120-240
AFIR compliant · Eichrecht certified
Four configurations from one product family — 120 kW, 160 kW, 180 kW, or 240 kW — so the power level can match the site's budget and grid connection today.
Features
- Custom features
- High efficiency
- Low noise design
- Wide voltage range
- Dynamic load balancing
- Available in 120 kW – 180 kW / 160 kW – 240 kW
Available in
- 120 kW – 180 kW
- 160 kW – 240 kW
Specifications
- AC input
- 3-phase 400 VAC, 50 Hz
- DC output
- 120 kW (2×60), 180 kW (2×90), 160 kW (2×80), 240 kW (2×120), Mode 4, >96% efficiency
- Charging points
- 2 × CCS
- Protection
- IP54, -25°C to 60°C (derating from 55°C)
- Dimensions (H×W×D)
- 1770 × 720 × 815 mm
- Weight
- ≈340 kg (120 kW) / ≈390 kg (180 kW) / ≈350 kg (160 kW) / ≈400 kg (240 kW)
- Certification
- CE, EN 61851-1 / EN 61851-23
- Backend
- OCPP 1.6 / 2.01, RFID or touchscreen start/stop, GPS positioning
